Fuel Pump Unit Disassembly/Assembly: AWD

G14579185

Courtesy of MAZDA MOTORS CORP.

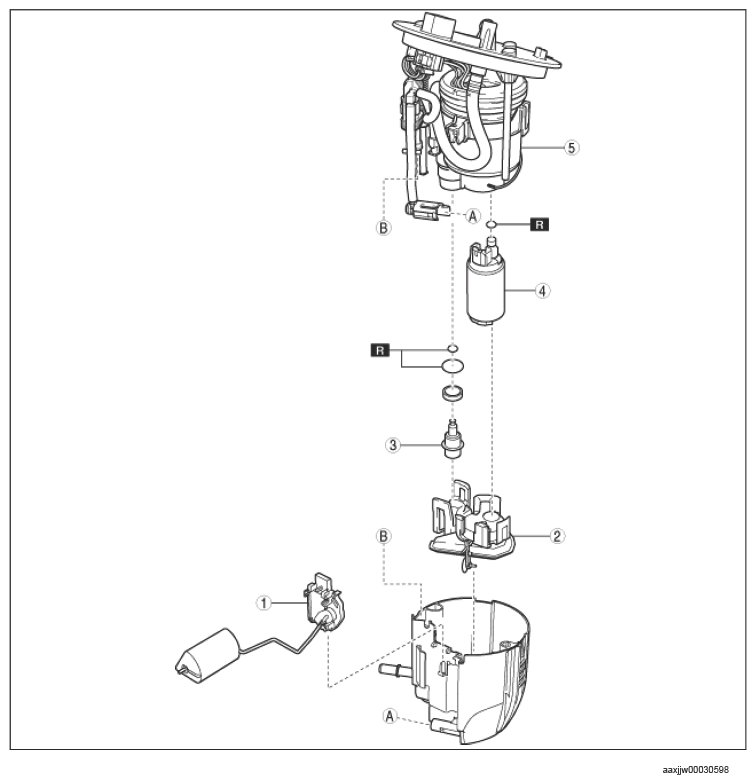

PART DESCRIPTION

1	Fuel gauge sender unit
2	Fuel filter (low-pressure)
3	Pressure regulator
4	Fuel pump
5	Fuel filter (high-pressure)
