Brush Set Assembly Note

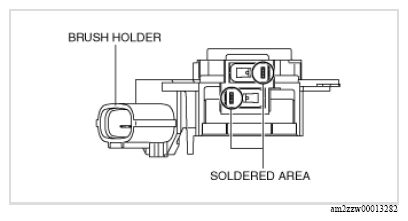

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.
G13113050Courtesy of MAZDA MOTORS CORP.

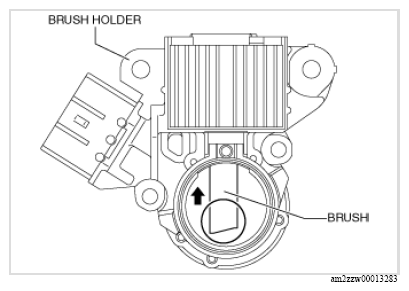

  1. Press the brush into the brush holder with it facing in the direction shown in the figure.
    G13113052Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the brush holder.
