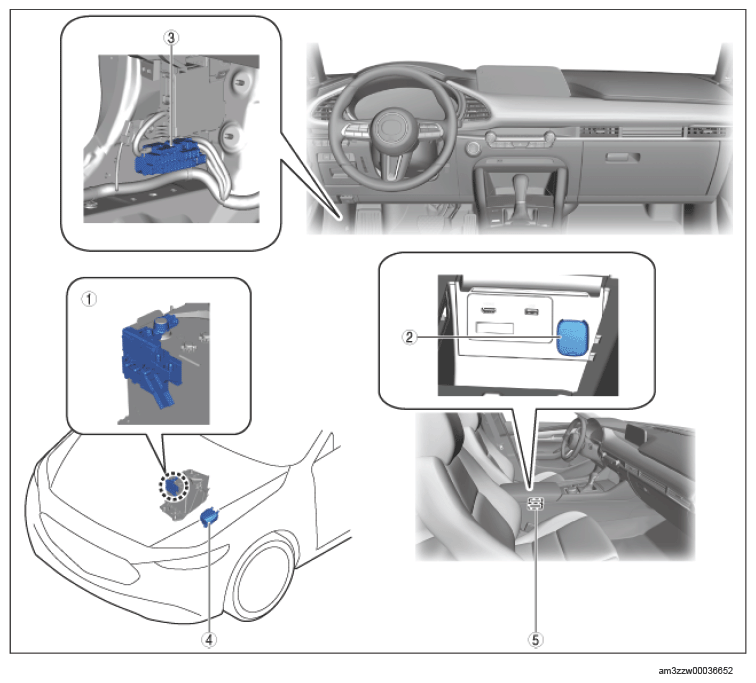

Power System Location Index [(Us)]
PART DESCRIPTION
| Component. No | Refer to |
|---|---|
| 1 | Main fuse (See MAIN FUSE REMOVAL/INSTALLATION [(US)] .) |
| 2 | Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See CENTER ACCESSORY SOCKET INSPECTION .) |
| 3 | Fuse block (See FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) |
| 4 | Relay and fuse block (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION [(US)] .) (See RELAY INSPECTION .) |
| 5 | Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION [(US)] .) (See BACKUP POWER SUPPLY INSPECTION .) |
