Electronically Controlled Brake Unit Removal/Installation [L.H.D.]
>>
Reserve Hose Installation Note
Reserve Hose Installation Note

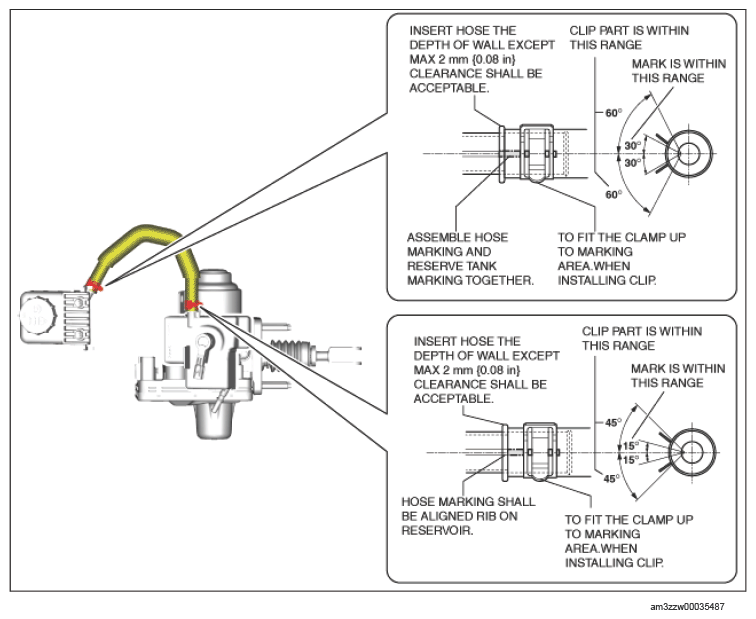

Install the reserve hoses as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
