Home >> Mazda >> 2022 >> 3 Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Trim >> Assist Handle Removal/Installation >> Installation

Assist Handle Removal/Installation: Installation

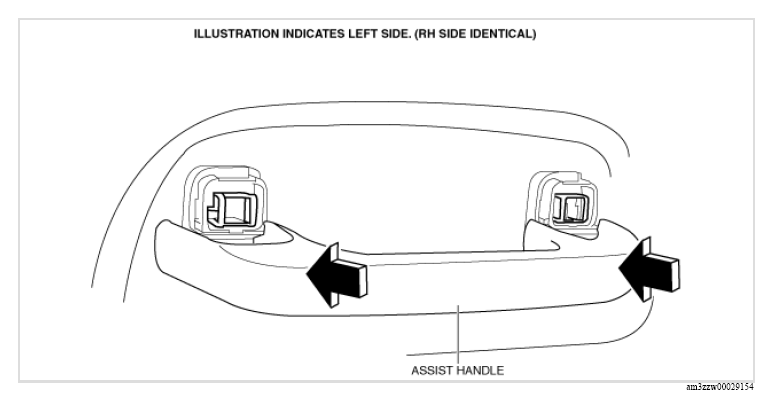

  1. Push the assist handle in the direction of the arrows shown in the figure and insert it into the assist handle brackets.
    G13179341Courtesy of MAZDA MOTORS CORP.

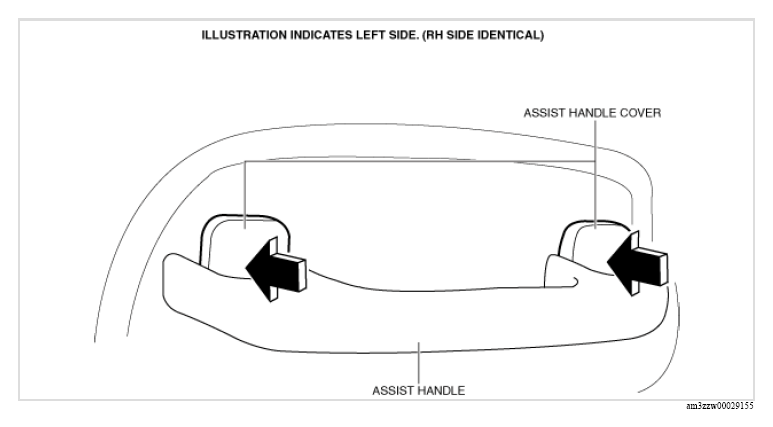

  2. Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.
G13179342Courtesy of MAZDA MOTORS CORP.
