Replacement part
| Rivet Quantity: 14 Location of use: Upper face |

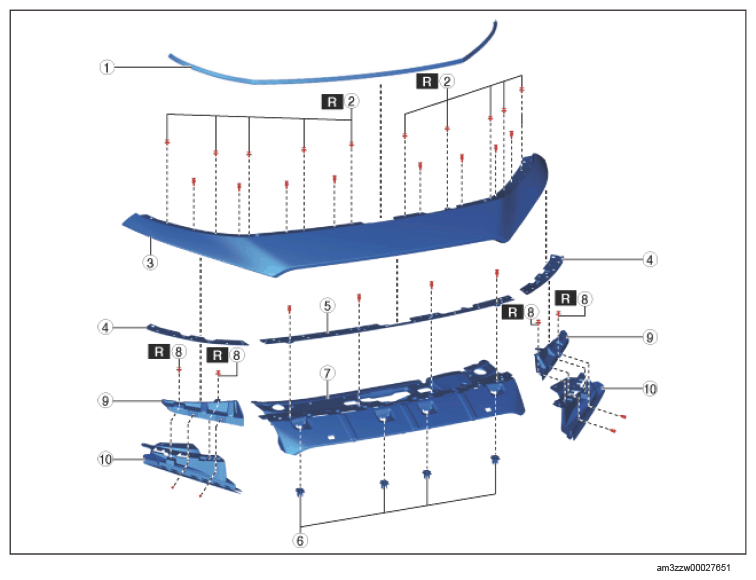

- Disassemble in the order indicated in the table.PART DESCRIPTION
Component No. Refer to 1 Parting seal weatherstrip 2 Rivet A
(See Rivet Removal Note .)3 Upper grille 4 Set plate A 5 Set plate B 6 Locator pin 7 Bracket A 8 Rivet B
(See Rivet Removal Note .)9 Bracket B 10 Bracket C - Assemble in the reverse order of disassembly.
