Trunk Lid Weatherstrip Installation Note

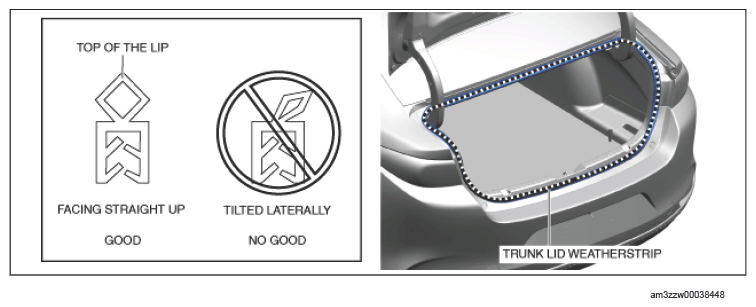

  1. Verify that the top of the lip of the trunk lid weatherstrip around the entire perimeter is facing straight up.
    G14583836

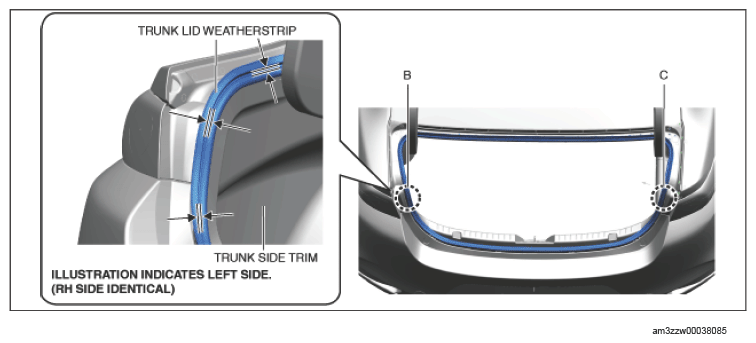

  2. Verify that the grooves (depressions) of the trunk lid weatherstrip on areas B and C are even.
G14583837
