Answer-Back Buzzer Does Not Sound: Outline

ANSWER-BACK BUZZER DOES NOT SOUND (SECURITY AND LOCKS) DESCRIPTION AND POSSIBLE CAUSE

Description
  • The keyless beeper is not activated when door lock/unlock operation is performed using the remote transmitter button.
Possible cause
  • Personalization feature not set
  • Connector or terminal malfunction of the following parts:
    • Keyless beeper
    • BCM
  • Short to power supply, short to ground, or open circuit in keyless beeper signal circuit
  • Keyless beeper malfunction
  • BCM malfunction

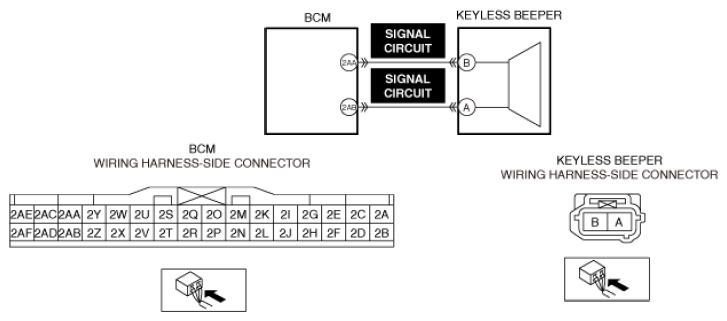

G14582826Courtesy of MAZDA MOTORS CORP.
