Front Inner Handle

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    4. Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(US)] .)

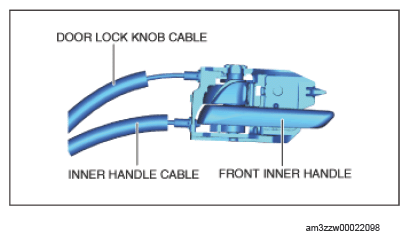

  3. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.
    G14583560Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
