DTC P2107-00: Throttle Valve Actuator Control Module Processor Error: Outline

DTC P2107:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Throttle valve actuator control module processor error
Detection condition	PCM internal malfunction.
Fail-safe	Restricts the upper limit of the engine speed. Fixes the throttle valve opening angle.

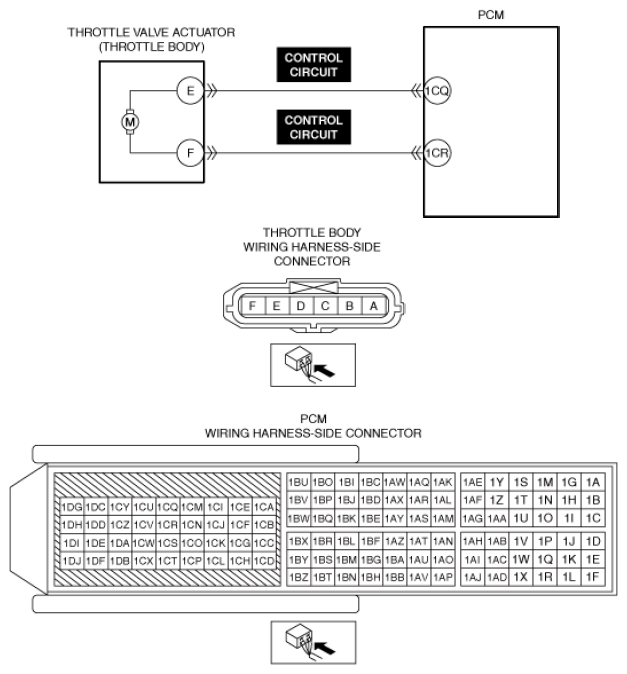

Possible cause	Throttle body connector or terminals malfunction PCM connector or terminals malfunction Short circuit in throttle valve actuator control circuits PCM malfunction Throttle valve actuator control module internal processor malfunction (built-into PCM)
Courtesy of MAZDA MOTORS CORP.
