Washer Fluid-Level Sensor Removal/Installation: Notes

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(US)] .)

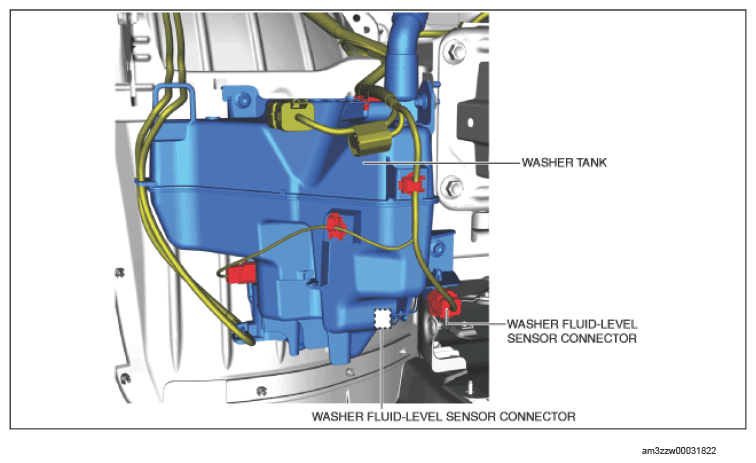

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.

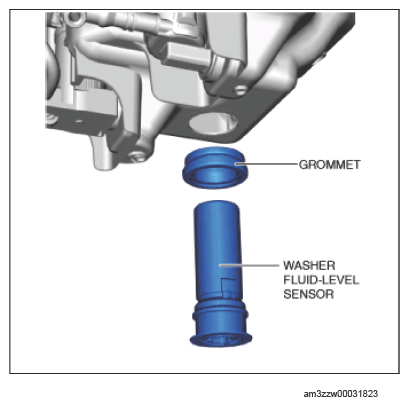

Remove the washer fluid-level sensor.

Courtesy of MAZDA MOTORS CORP.
Remove the grommet. (See Grommet Installation Note .)
Install in the reverse order of removal.
