Clutch Unit Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

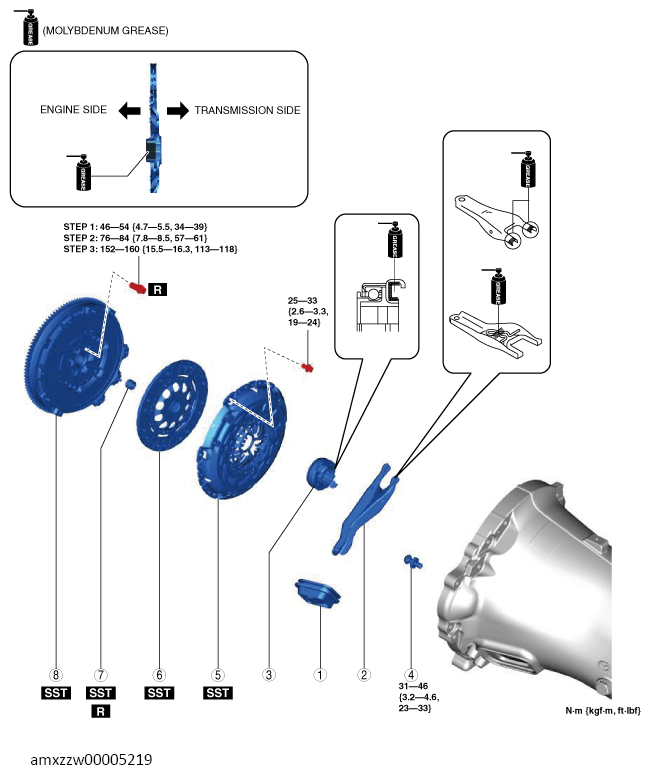

COMPONENT DESCRIPTION
| 1 | Boot |
| 2 | Clutch release fork |
| 3 | Clutch release collar |
| 4 | Pivot pin |
| 5 | Clutch cover (See Clutch Cover And Clutch Disc Removal Note .) (See Clutch Disc And Clutch Cover Installation Note .) |
| 6 | Clutch disc (See Clutch Cover And Clutch Disc Removal Note .) (See Clutch Disc And Clutch Cover Installation Note .) |
| 7 | Pilot bearing (See Pilot Bearing Removal Note .) (See Pilot Bearing Installation Note .) |
| 8 | Dual-mass flywheel (See Dual-mass Flywheel Removal Note .) (See Dual-mass Flywheel Installation Note .) |
