Cd Player Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION .)
    13. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)
  3. Remove the nuts.

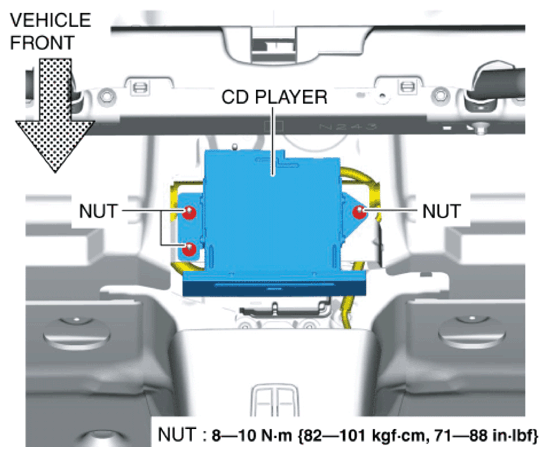

    Fig 1: Removing Nuts
    G10954928Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

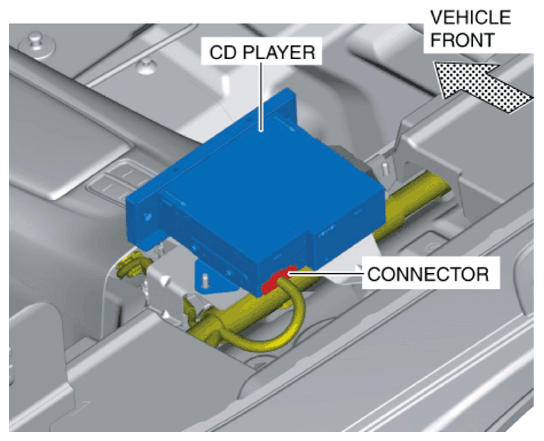

    Fig 2: Disconnecting Connector
    G10954929Courtesy of MAZDA MOTORS CORP.
  5. Remove the CD player.
  6. To remove the CD player bracket, remove the nuts and then remove the CD player bracket.

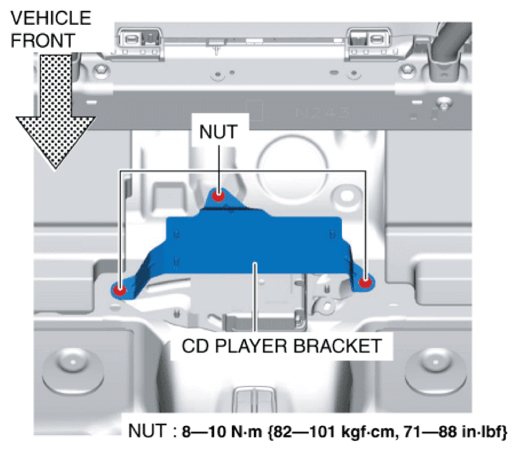

    Fig 3: Removing CD Player Bracket
    G10954930Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
