Transmission Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.

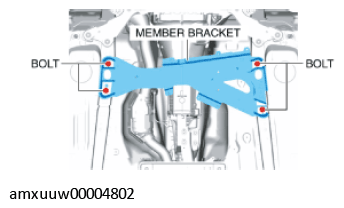

- Remove the member bracket. (With member bracket)

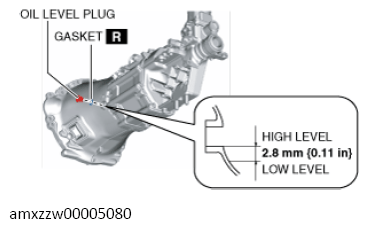

- Remove the oil level plug and gasket.
- Verify that the manual transmission oil is within the range shown in the figure.
- If it is not within the range, adjust the manual transmission oil level.
Specified transmission oil Mazda Original Long Life Gear Oil IS (1) (1) Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended. If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-90)). However, shifting in very low temperatures may become difficult. - Install a new gasket and the oil level plug.
Tightening torque
40-59 N.m {4.1-6.0 kgf.m, 30-43 ft.lbf}

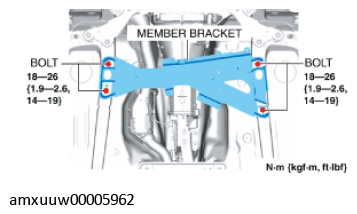

- Install the member bracket. (With member bracket)
