Rear Combination Light Short-Cord Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
2. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
3. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
Disconnect the connector.

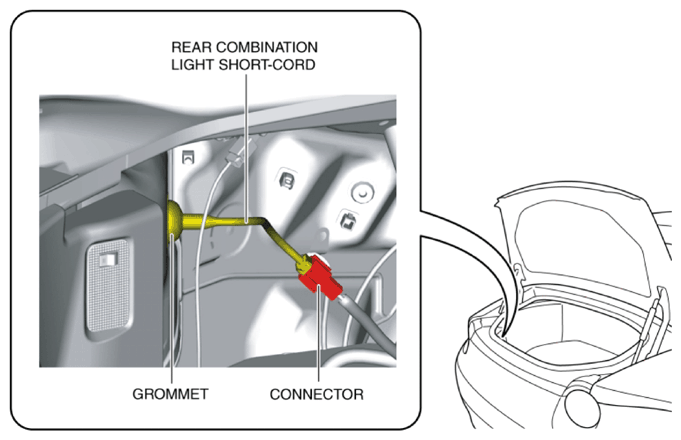

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Press the grommet to the outside from inside the body.
Remove the rear combination light short-cord.
Install in the reverse order of removal.
