Light Switch

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the light switch terminals is as indicated in the table.

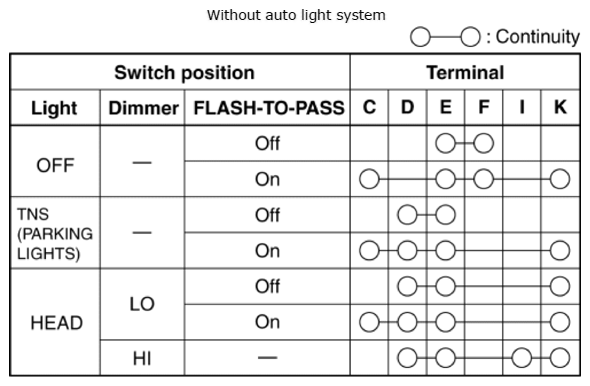

Fig 1: Light Switch Terminals Continuity Chart (Without Auto Light System)

Courtesy of MAZDA MOTORS CORP.

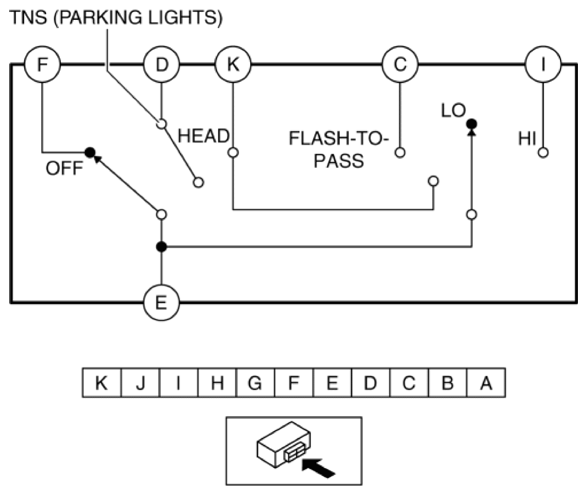

Fig 2: Checking Continuity Between Light Switch Terminals (Without Auto Light System)

Courtesy of MAZDA MOTORS CORP.

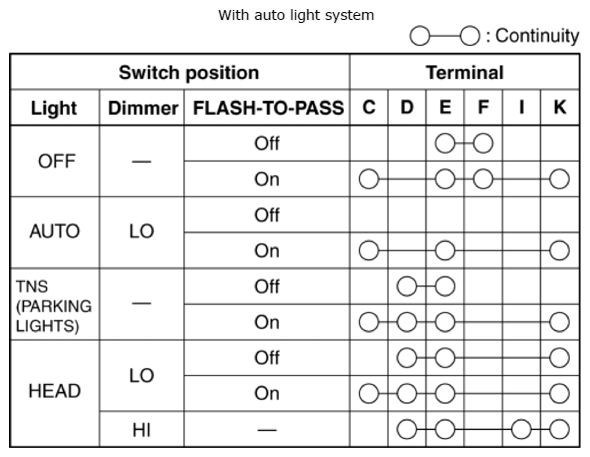

Fig 3: Light Switch Terminals Continuity Chart (With Auto Light System)

Courtesy of MAZDA MOTORS CORP.

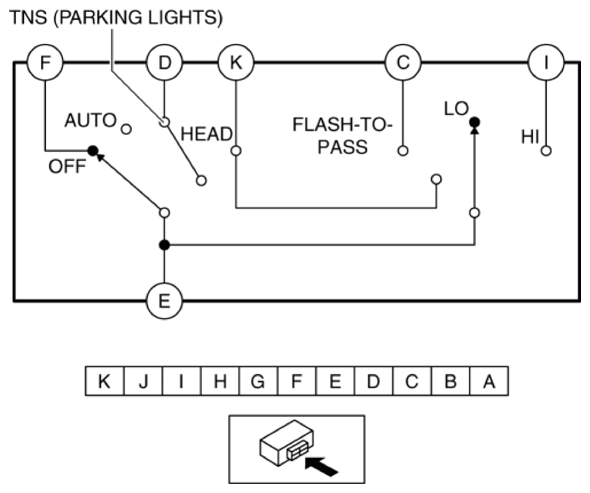

Fig 4: Checking Continuity Between Light Switch Terminals (With Auto Light System)

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
