Back-Up Light Switch Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Lift up the vehicle.
Remove the bolts.

Fig 1: Removing Member Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the member bracket.
Disconnect the connector.

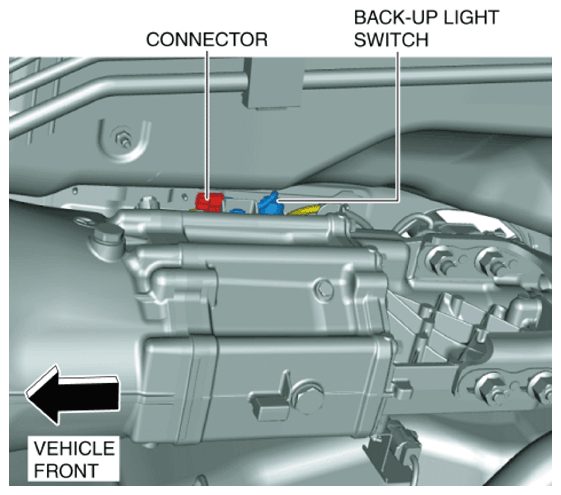

Fig 2: Disconnecting Back-Up Light Switch Connector
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the back-up light switch terminals is as indicated in the table.

Fig 3: Back-Up Light Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig 4: Checking Continuity Between Back-Up Light Switch Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the back-up light switch. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [M66M-D] .)
