Auto Leveling Sensor Short-Cord Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the auto leveling sensor short-cord. (See AUTO LEVELING SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
Verify that the continuity between the auto leveling sensor short-cord terminals is as indicated in the table.

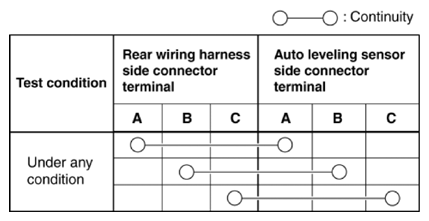

Fig 1: Auto Leveling Sensor Short-Cord Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

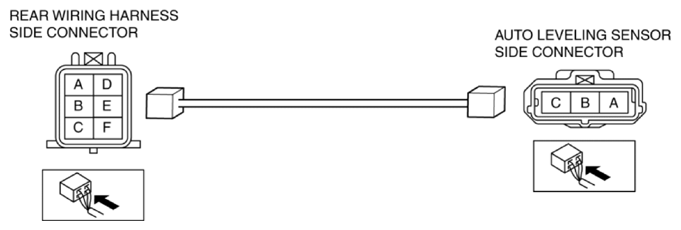

Fig 2: Checking Continuity Between Auto Leveling Sensor Short-Cord Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the auto leveling sensor short-cord. (See AUTO LEVELING SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
