Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. While pressing the clip A tabs in the direction of arrows (1) shown in the figure, press the clip A in the direction of arrow (2) to detach the clip A tabs from the auto leveling sensor.
    Fig 1: Pressing Auto Leveling Sensor Clip Tabs
    G10954787Courtesy of MAZDA MOTORS CORP.
  3. While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the auto leveling sensor.
  4. Disconnect the connector.
  5. Remove the nut.
  6. Remove the bolt.
  7. Pull out the hook from the rear crossmember.

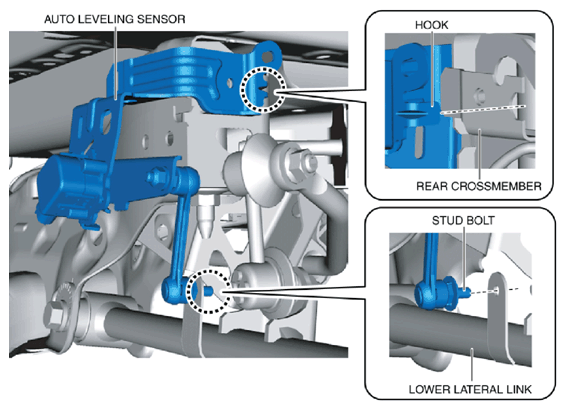

    Fig 2: Pulling Out Hook From Rear Crossmember
    G10954788Courtesy of MAZDA MOTORS CORP.
  8. Pull out the stud bolt from the lower lateral link and remove the auto leveling sensor.
  9. Install in the reverse order of removal.
  10. Perform headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
