Rod Antenna Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the service hole cover on the trunk side trim (RH).

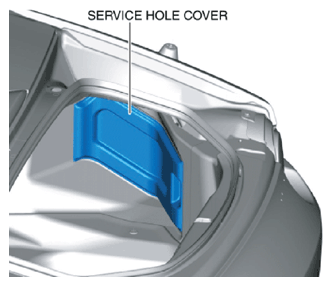

Fig 1: Removing Service Hole Cover On Trunk Side Trim (RH)
Courtesy of MAZDA MOTORS CORP.
Remove the nut.

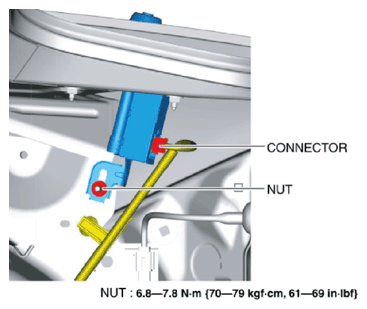

Fig 2: Removing Nut
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the mounting nut using snap ring pliers.

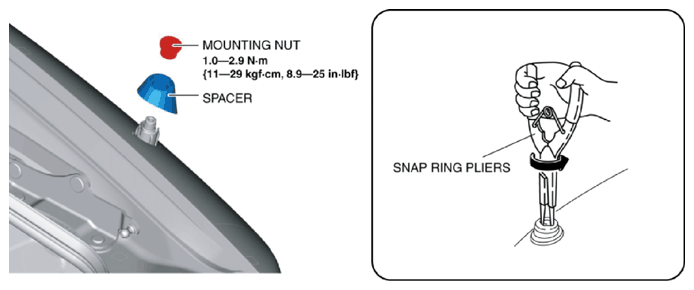

Fig 3: Removing Mounting Nut Using Snap Ring Pliers
Courtesy of MAZDA MOTORS CORP.
Remove the spacer.
Remove the rod antenna in the direction of the arrow shown in the figure.

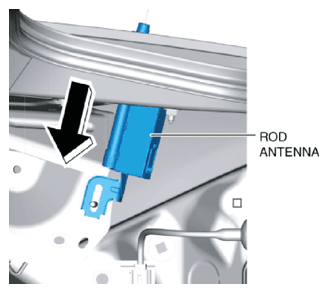

Fig 4: Removing Rod Antenna
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
