Airflow Mode Actuator Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the connector.

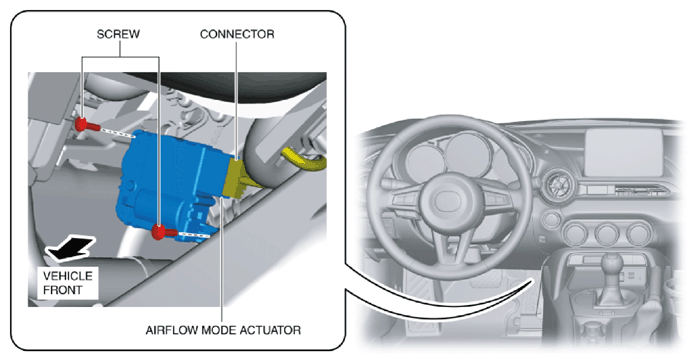

    Fig 1: Removing Airflow Mode Actuator
    G10953261Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws.
  4. Remove the airflow mode actuator.
  5. Install in the reverse order of removal.
