With Washer Fluid-level Sensor

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Drain the washer fluid.
NOTE:
- If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. Drain the washer fluid before performing the procedure.
Remove the nut.

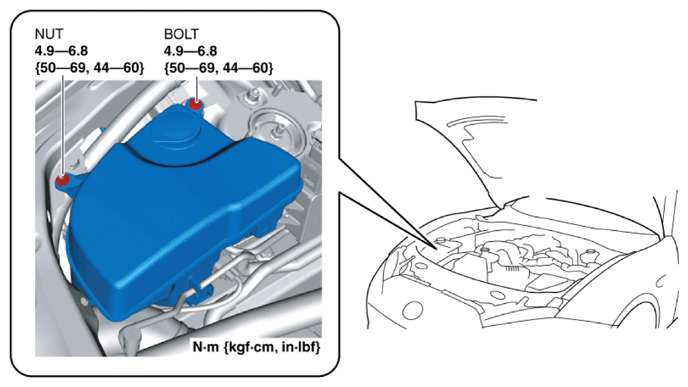

Fig 1: Removing Nut
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.
Pull cooler pipe B out from the washer tank hook.

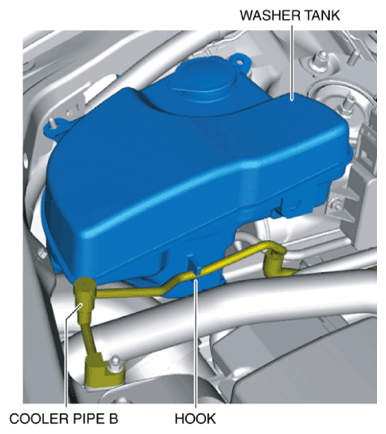

Fig 2: Pulling Cooler Pipe B Out From Washer Tank Hook
Courtesy of MAZDA MOTORS CORP.
Lift the washer tank in the direction of the arrow shown in the figure.

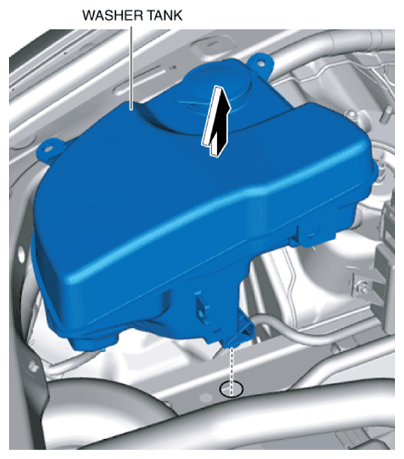

Fig 3: Lifting Washer Tank
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

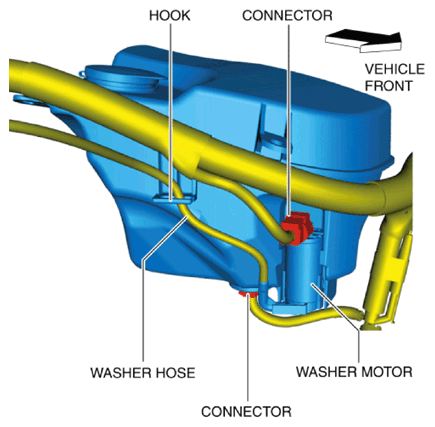

Fig 4: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer hose from the washer motor.
Pull the washer hose out from the washer tank hook.
Remove the washer tank.
When replacing the washer tank, remove the following parts:
1. Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION .)
2. Washer fluid-level sensor (See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
  NOTE:
  - If the above parts are not malfunctioning, install the above parts to a new washer tank.
Install in the reverse order of removal.
