A/C Compressor Pulley Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the A/C compressor pulley is removed with the SST (49 0839 425C) tabs attached to the stator, the stator could be damaged. When using the SST (49 0839 425C), make sure the tabs are not attached.

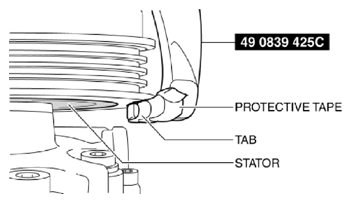

Fig 1: Removing A/C Compressor Pulley
G10953203Courtesy of MAZDA MOTORS CORP.
  1. Remove the A/C compressor pulley using the SST (49 0839 425C).
NOTE:
  • Wrap protective tape around the tabs of the SST (49 0839 425C)  so that the A/C compressor pulley is not scratched.

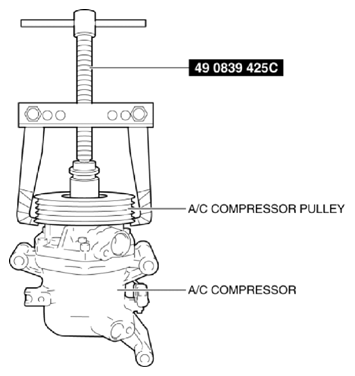

Fig 2: Removing A/C Compressor Pulley Using SST (49 0839 425C)
G10953204Courtesy of MAZDA MOTORS CORP.
