A/C Unit Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the urethane seal for damage and cracks.

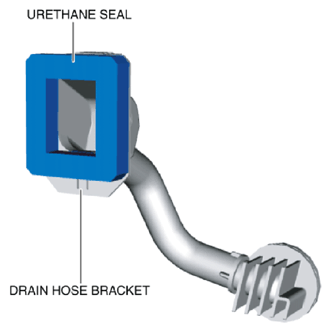

    Fig 1: Identifying Drain Hose Bracket Urethane Seal
    G10953180Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the drain hose bracket.
