Rear Oil Seal Replacement: Notes
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] (MT).) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
- Remove the flywheel (MT) or drive plate (AT). (See CLUTCH UNIT REMOVAL/INSTALLATION (MT).) (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

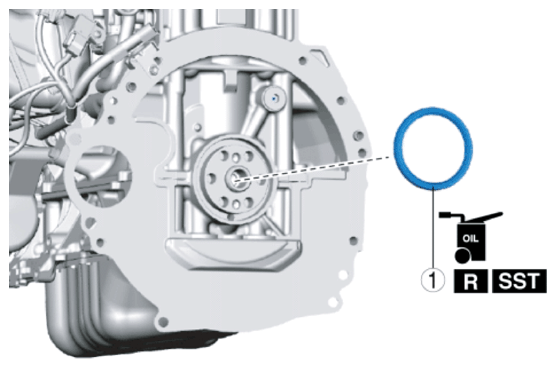

COMPONENT DESCRIPTION
| 1 | Rear oil seal (See Rear Oil Seal Removal Note .) (See Rear Oil Seal Installation Note .) |
