Radiator Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always use two people when removing/installing the radiator, with one person supporting the radiator. Otherwise, the radiator could fall off and be damaged.

Remove the bolts shown in the figure.

Fig 1: Identifying Radiator Bolts
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the radiator, the condenser bracket is caught on the urethane which damages the urethane. Always install new urethane after removing the radiator. (See RADIATOR INSTALLATION NOTE .)

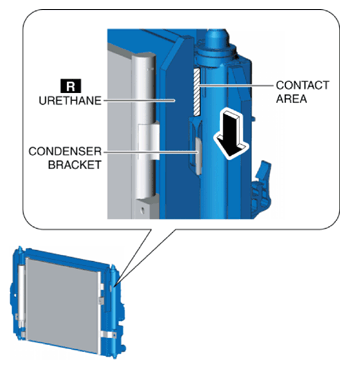

Fig 2: Caution For Removing Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the radiator.
If the radiator is to be reused, perform the following procedure:
1. Completely remove the urethane.
2. Clean the urethane installation surface.
