Nut Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the nut to the front crossmember bracket as shown in the figure.

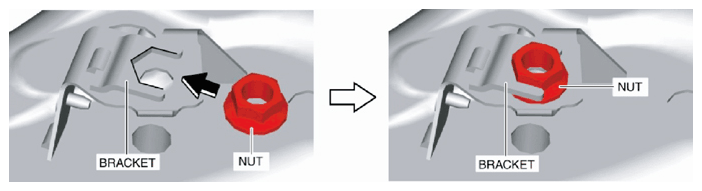

    Fig 1: Installing Nut To Front Crossmember Bracket
    G10953078Courtesy of MAZDA MOTORS CORP.
