Camber Adjustment

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Adjust the camber before adjusting the caster.
When adjusting the camber, abnormal noise may occur if the adjusting cam bolt and nut are reused after removing the adjusting cam bolt installation nut. When adjusting the camber, be careful not to completely remove the adjusting cam bolt installation nut.
- If the installation nut for the adjusting cam bolt is removed, replace the adjusting cam bolt and nut with new ones.

Loosen the installation nut of the adjusting cam bolt on the front side of the front lower arm.

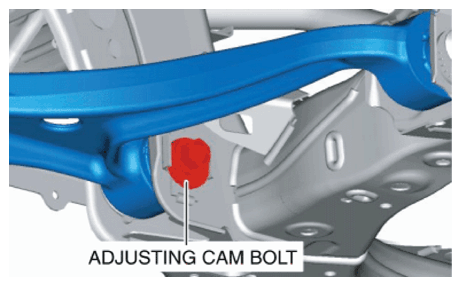

Fig 1: Identifying Adjusting Cam Bolt (Camber Adjustment)
Courtesy of MAZDA MOTORS CORP.

Rotate the adjusting cam bolt in either direction to adjust the camber. Specification

Vehicle height⁽¹⁾

Camber

350-358 {13.8-14.0}-

0°30'±1°

359-367 {14.2-14.4}-

0°18'±1°

368-376 {14.5-14.8}-

0°07'±1°

377-385 {14.9-15.1}

0°02'±1°

386-394 {15.2-15.5}

0°08'±1°

⁽¹⁾	Vehicle height: From the end of the front fender to the center of the wheel (mm)

	Left wheel	Right wheel
Positive direction	Clockwise	Counterclockwise
Negative direction	Counterclockwise	Clockwise

NOTE:

Refer to the following figure to adjust the angle of the adjusting cam bolts in single increments.

ADJUSTING CAM BOLT ON FRONT SIDE OF FRONT LOWER ARM

Scale	Link movement (mm)	Camber change amount (angle)
1	1.2 mm {0.047 in}	-0°23'
2	2.3 mm {0.091 in}	-0°45'
3	3.2 mm {0.13 in}	-1°03'
4	3.9 mm {0.15 in}	-1°18'
5	4.3 mm {0.17 in}	-1°27'
6	4.5 mm {0.18 in}	-1°30'

Tighten the nut.
Tightening torque
- 135-165 N.m {14-16 kgf.m, 100-121 ft.lbf}
Adjust the front caster angle and total toe-in. (See CASTER ADJUSTMENT .) (See TOTAL TOE-IN ADJUSTMENT .)
