Lower Column Cover

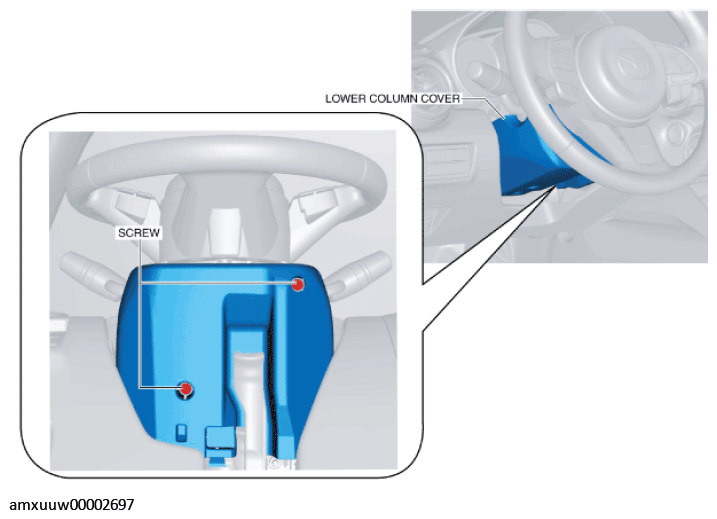

  1. Remove the screws.
    G11275221Courtesy of MAZDA MOTORS CORP.

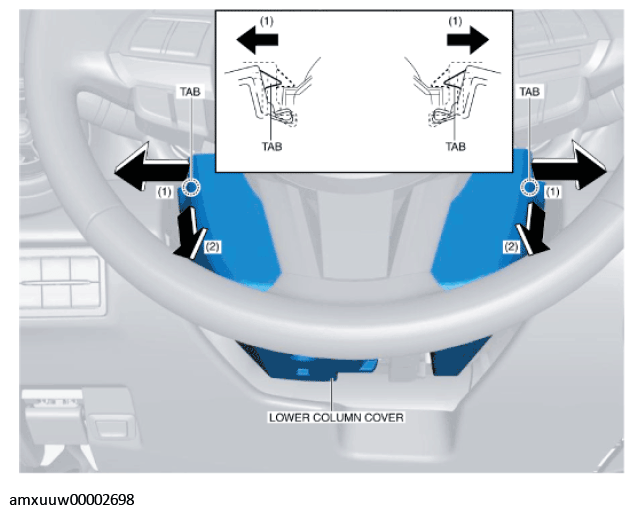

  2. Open the lower column cover in the direction of arrow (1) shown in the figure, move the lower column cover in the direction of arrow (2), and detach the tabs of the light switch and the wiper and washer switch from the lower column cover.
    G11275222Courtesy of MAZDA MOTORS CORP.

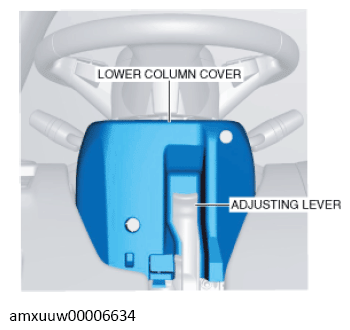

  3. Lower the adjusting lever to the bottommost position.
    G13491230Courtesy of MAZDA MOTORS CORP.

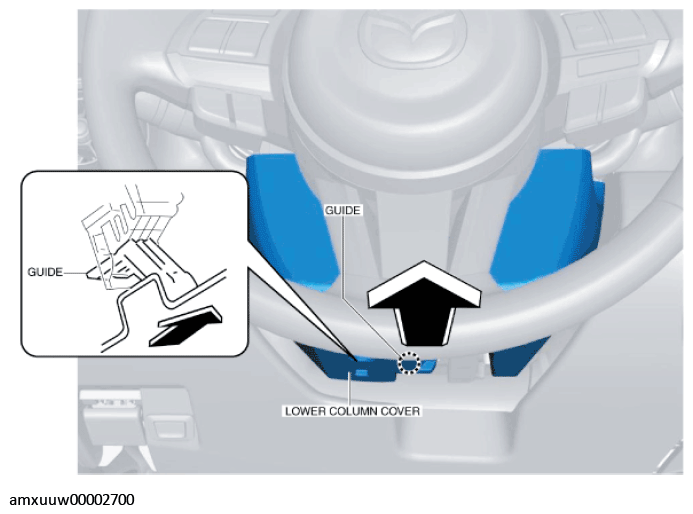

  4. Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.
    G11275224Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
