Back Trim Disassembly/Assembly

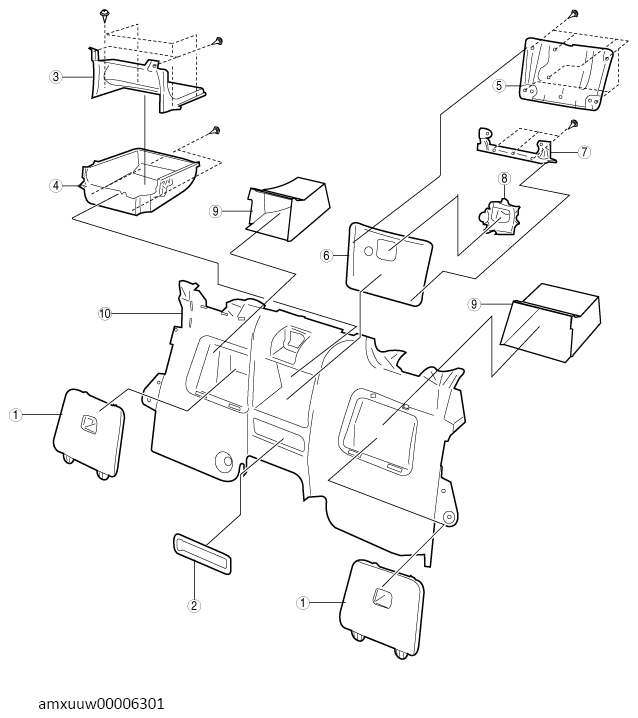

  1. Disassemble in the order indicated in the table.
    G13491214Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Lid
    2 Cover
    3 Front box
    4 Rear box
    5 Inner lid
    6 Outer lid
    7 Hinge
    8 Lever
    9 Side box
    10 Back trim
  2. Assemble in the reverse order of disassembly.
