Automatic Transmission Shift Mechanism Location Index

Courtesy of MAZDA MOTORS CORP.

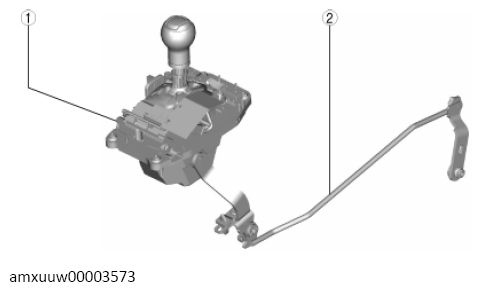

COMPONENT DESCRIPTION

1	Selector lever (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .) (See SELECTOR LEVER INSPECTION .) (See SHIFT-LOCK SYSTEM INSPECTION .) (See NOT P POSITION SWITCH INSPECTION .)
2	Control rod (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
