Front Lower Arm Ball Joint Installation Note

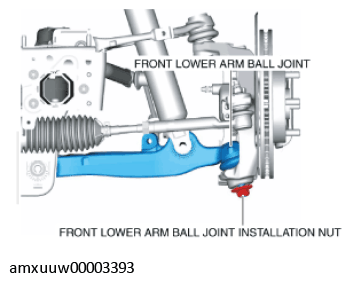

  1. Loosen the front lower arm ball joint installation nut.
    G11278981Courtesy of MAZDA MOTORS CORP.

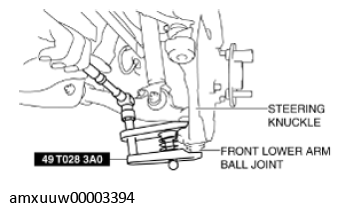

  2. Disconnect the steering knuckle and front lower arm ball joint end using the SST.
    G11278982Courtesy of MAZDA MOTORS CORP.

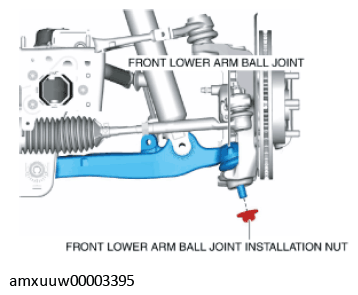

  3. Remove the front lower arm ball joint installation nut.
    G11278983Courtesy of MAZDA MOTORS CORP.
  4. Suspend the steering knuckle to the coil spring as shown in the figure after removing the front lower arm ball joint.
    G11278984Courtesy of MAZDA MOTORS CORP.
