EPS Control Module Installation note

1. Install the EPS Control Module so that the projecting part of the EPS Control Module (rotor) is engaged with the notch in the rubber.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • If the projecting part of the EPS Control Module (rotor) is not engaged with the notch in the rubber, adjust the position of the EPS Control Module projection (rotor).
2. Tighten the bolts evenly.

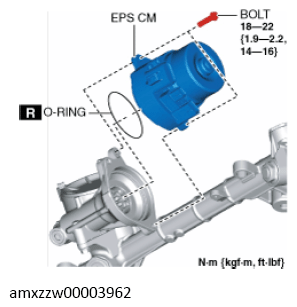

Fig 1: Electric Power Steering Control Module Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
