Magnetic Clutch Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

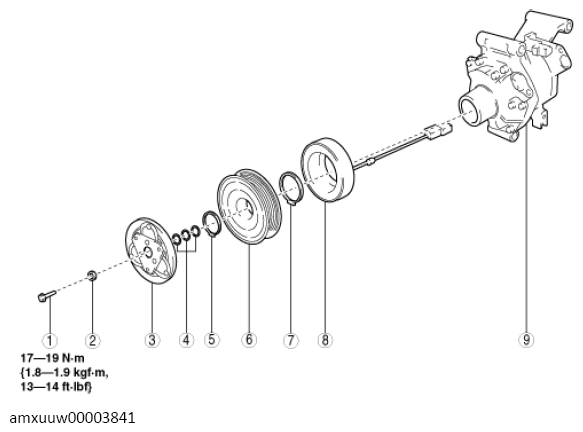

    Fig 1: Magnetic Clutch Components With Torque Specification
    G13489811Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
  3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
