A/C Compressor Installation Note

CAUTION:
  • Due to the high moisture-absorption characteristics of the compressor oil, it may absorb moisture if left over a long period of time thereby negatively affecting A/C operation. Drain the compressor oil and refill within 10 min of each other.

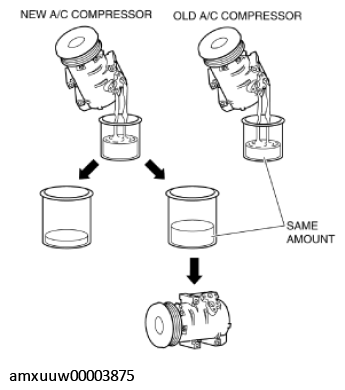

  1. Rotate the new A/C compressor shaft 6 to 8 revolutions while pouring compressor oil into a clean measuring container.
    NOTE:
    • Use this compressor oil to refill the new compressor. Do not allow compressor oil to become contaminated.
  2. Rotate the old A/C compressor shaft 6 to 8 revolutions while adding compressor oil to a separate, clean measuring container.
  3. Compare the compressor oil amounts.
    NOTE:
    • The amount of the compressor oil drained from the new A/C compressor should be more than the old one.
  4. Add the same amount compressor oil drained from the old A/C compressor back into the new A/C compressor.
G11276193Courtesy of MAZDA MOTORS CORP.
