Starter Interlock Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Disconnect the starter interlock switch connector.
  3. Remove the starter interlock switch using the following procedure:

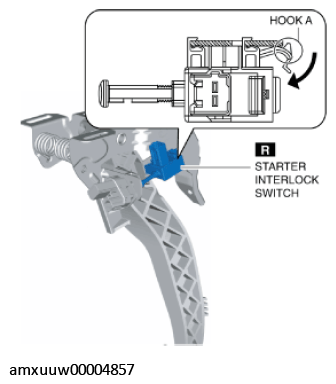

    1. Detach hook A in the direction of the arrow shown in the figure.
      G11279461Courtesy of MAZDA MOTORS CORP.

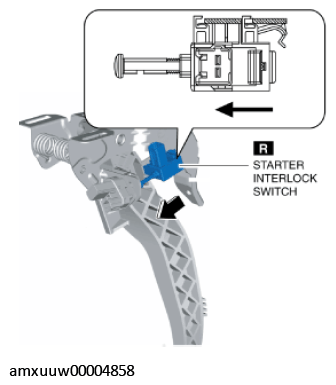

    2. Slide the starter interlock switch in the direction of the arrow shown in the figure.
      G11279462Courtesy of MAZDA MOTORS CORP.

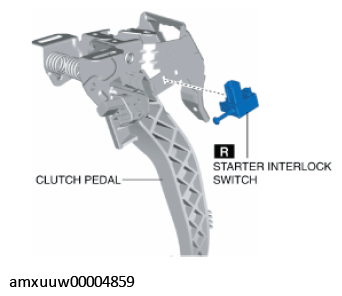

    3. Remove the starter interlock switch from the clutch pedal.
    G11279463Courtesy of MAZDA MOTORS CORP.
  4. Install the starter interlock switch using the following procedure:

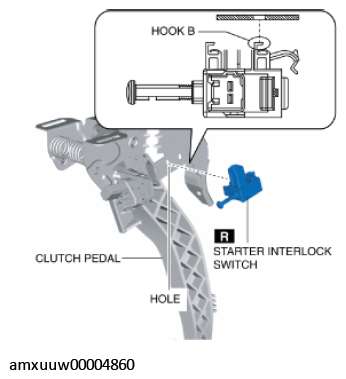

    1. Insert hook B of a new starter interlock switch into the clutch pedal hole.
      G11279464Courtesy of MAZDA MOTORS CORP.

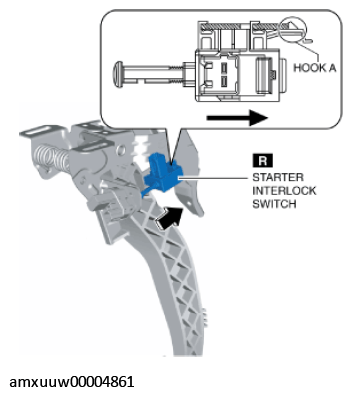

    2. While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure.
    G11279465Courtesy of MAZDA MOTORS CORP.

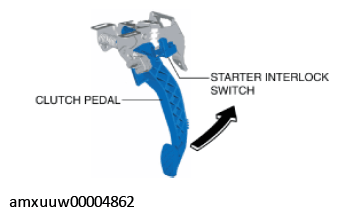

  5. Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.
    G11279466Courtesy of MAZDA MOTORS CORP.
  6. Connect the starter interlock switch connector.
  7. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  8. Fully depress the clutch pedal, and verify that the engine starts.
