Shift Panel Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

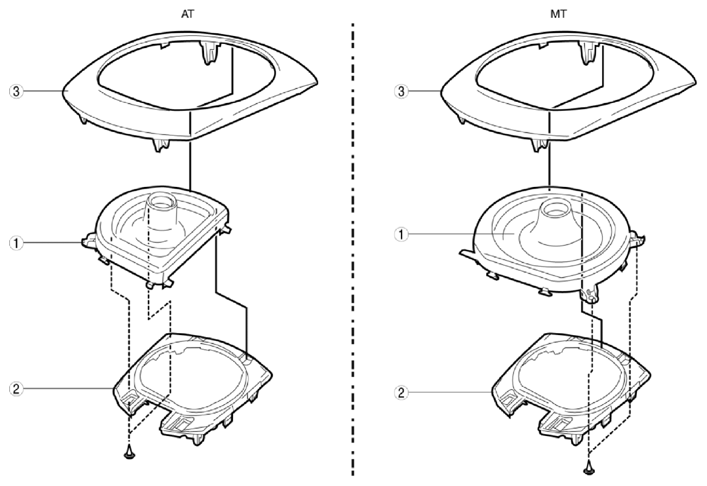

Fig 1: Exploded View Of Shift Panel

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot
2	Shift boot pane
3	Indicator panel

Remove the indicator when replacing the shift panel. (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
Assemble in the reverse order of disassembly.
