SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the convertible top.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION .)
    3. Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION .)
  4. Remove the screw.

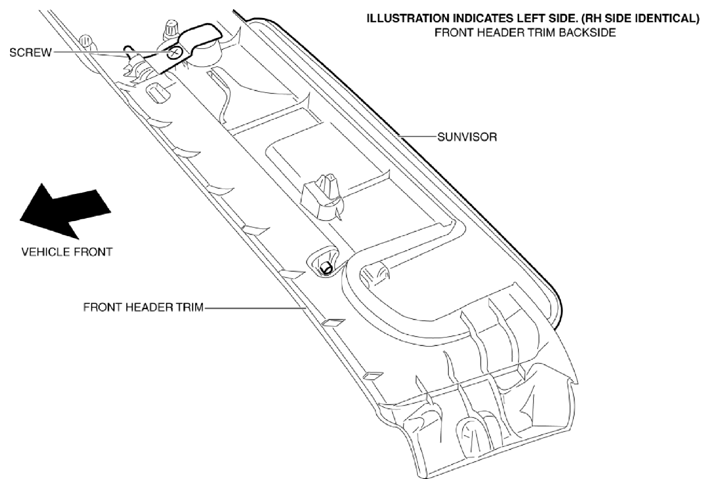

    Fig 1: Removing Screw
    G10954696Courtesy of MAZDA MOTORS CORP.
  5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

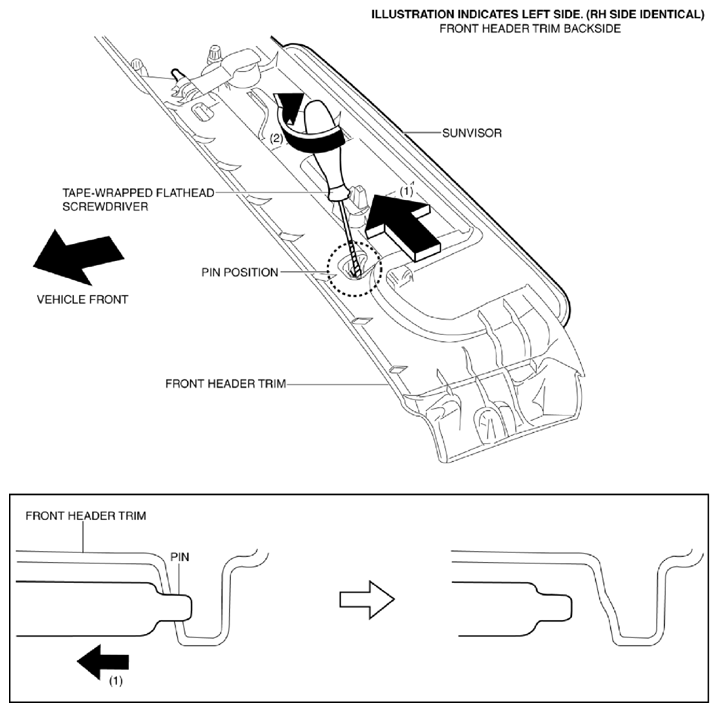

    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Position
    G10954697Courtesy of MAZDA MOTORS CORP.
  6. Rotate the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure while moving the sunvisor in the direction of arrow (2) and detach the pin from the front header trim.
  7. Remove the sunvisor.
  8. Install in the reverse order of removal.
