Rear Console Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

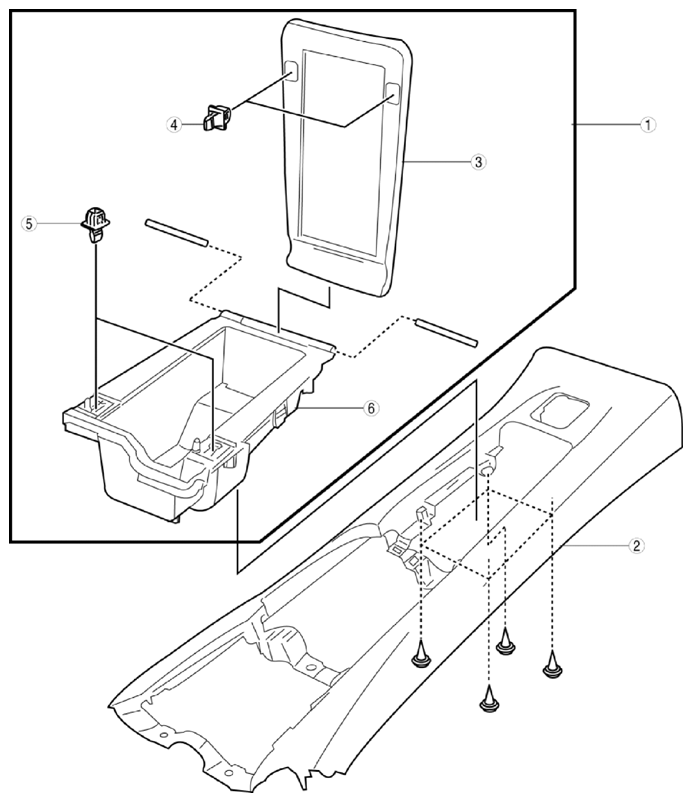

Fig 1: Identifying Rear Console Box Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear console box component
2	Rear console
3	Rear console lid
4	Latch
5	Striker
6	Rear console box

Assemble in the reverse order of disassembly.
