Front Header Trim Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Open the convertible top.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
Remove the female wedge. (See FEMALE WEDGE REMOVAL/INSTALLATION .)

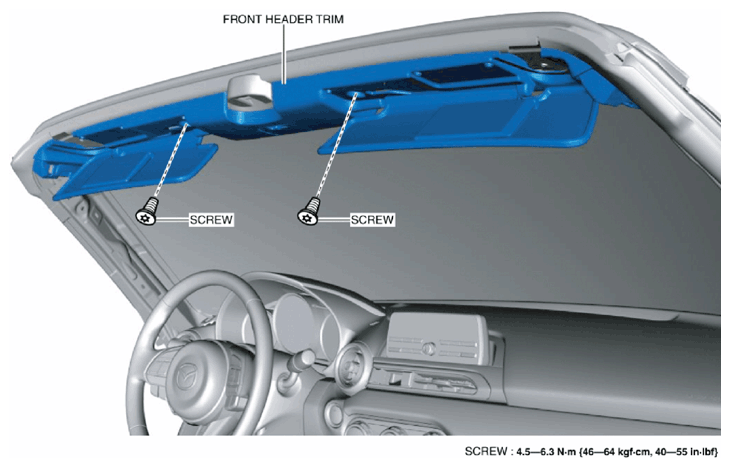

Remove the screws.

Fig 1: Removing Screws
Courtesy of MAZDA MOTORS CORP.

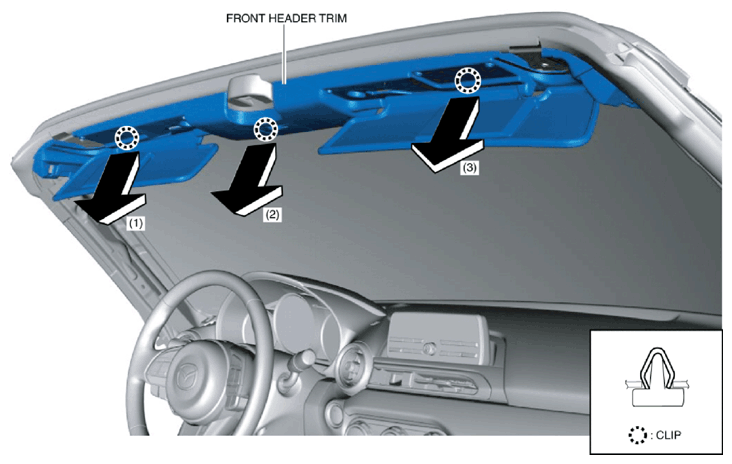

Move the front header trim in the order of arrows (1), (2) and (3) shown in the figure and remove it while detaching the clips.

Fig 2: Moving Front Header Trim
Courtesy of MAZDA MOTORS CORP.
Disconnect the map light connector.
Remove the map light when replacing the front header trim. (See MAP LIGHT REMOVAL/INSTALLATION .)
Install in the reverse order of removal. (See FRONT HEADER TRIM INSTALLATION NOTE .)
