Console Panel Disassembly/Assembly
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

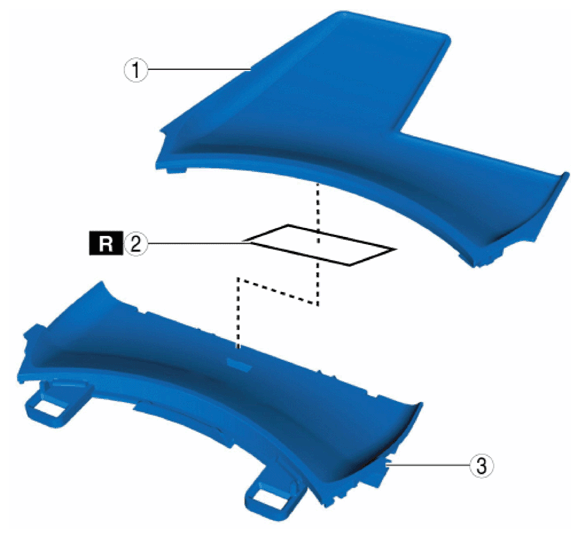

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Console mat |
| 2 |
Double-sided adhesive tape |
| 3 |
Console panel |
- Assemble in the reverse order of disassembly.
