Upper Column Cover

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the steering wheel to the bottommost position.
  2. Remove the upper column cover in the direction of the arrow, and detach the pins, tabs, and guides of the upper column cover from the lower column cover.

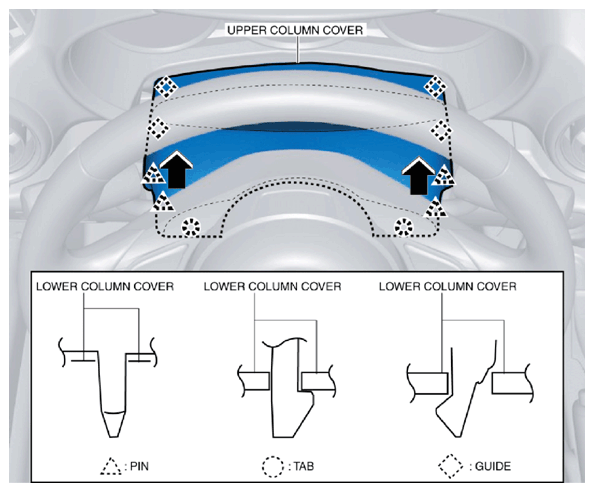

    Fig 1: Removing Upper Column Cover
    G10954600Courtesy of MAZDA MOTORS CORP.
  3. Remove the upper column cover.
  4. Install in the reverse order of removal.
