Lower Column Cover

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws.

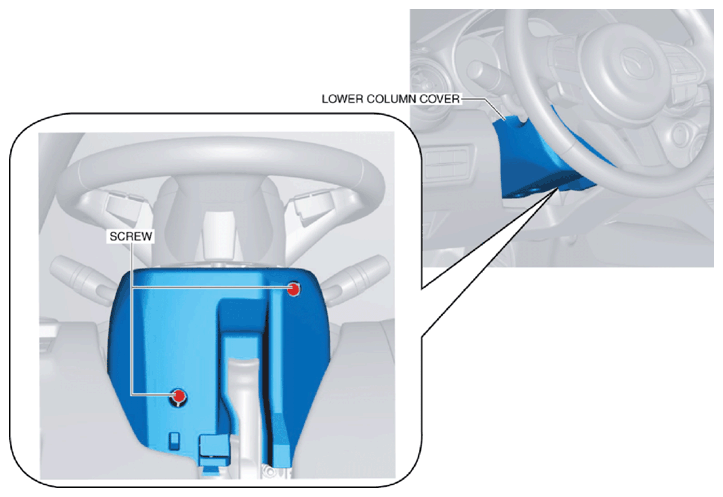

Fig 1: Removing Lower Column Cover Screws
Courtesy of MAZDA MOTORS CORP.
Open the lower column cover in the direction of arrow (1) shown in the figure, move the lower column cover in the direction of arrow (2), and detach the tabs of the light switch and the wiper and washer switch from the lower column cover.

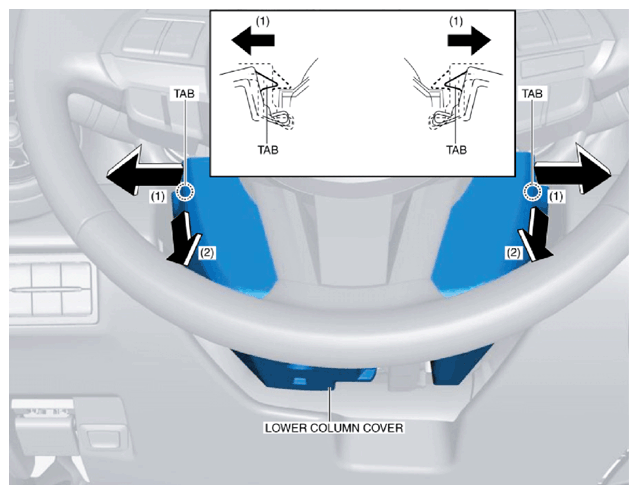

Fig 2: Moving Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Lower the tilt lever to the bottommost position.

Fig 3: Identifying Lower Column Cover And Tilt Lever
Courtesy of MAZDA MOTORS CORP.
Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.

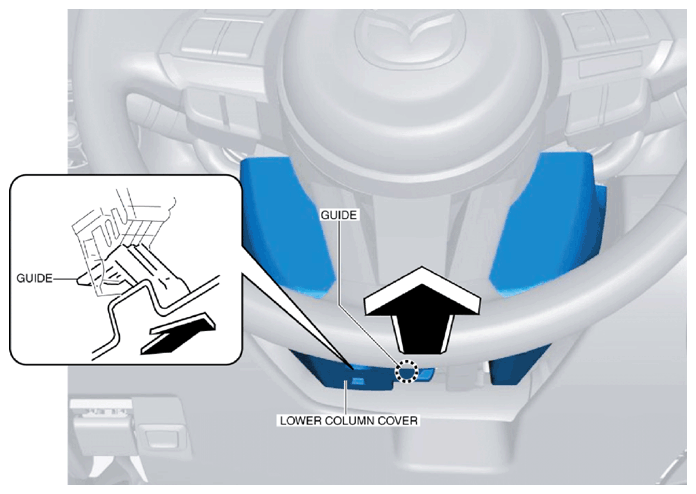

Fig 4: Moving Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
