Back Trim Disassembly/Assembly
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

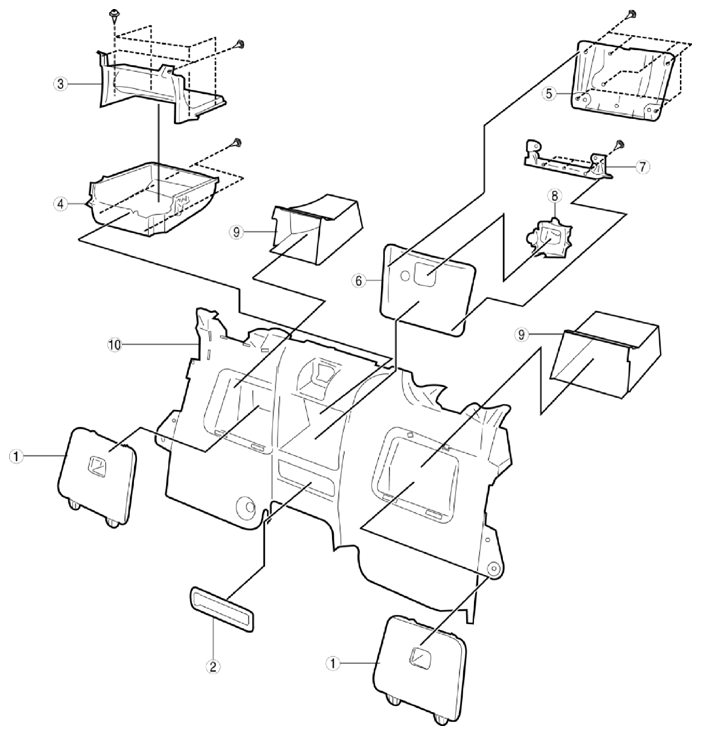

- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Lid |
| 2 |
Cover |
| 3 |
Front box |
| 4 |
Rear box |
| 5 |
Inner lid |
| 6 |
Outer lid |
| 7 |
Hinge |
| 8 |
Lever |
| 9 |
Side box |
| 10 |
Back trim |
- Assemble in the reverse order of disassembly.
