Inner Handle Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the inner handle.

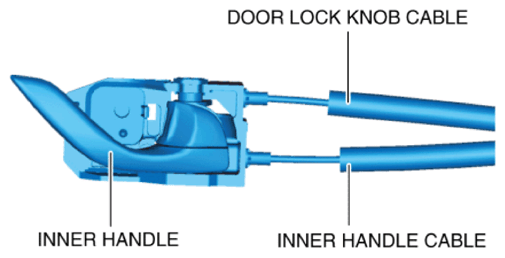

    Fig 1: Identifying Door Lock Knob Cable And Inner Handle Cable
    G10954262Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
