Disc Pad (Rear) Replacement: Notes

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the caliper and hang it in a place out of the way using a cable. (See CALIPER INSTALLATION NOTE .)

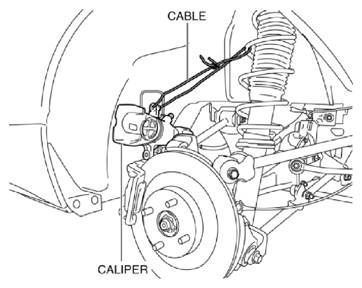

Fig 1: Removing Caliper And Hang Using Cable
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure.

Install in the reverse order of removal.

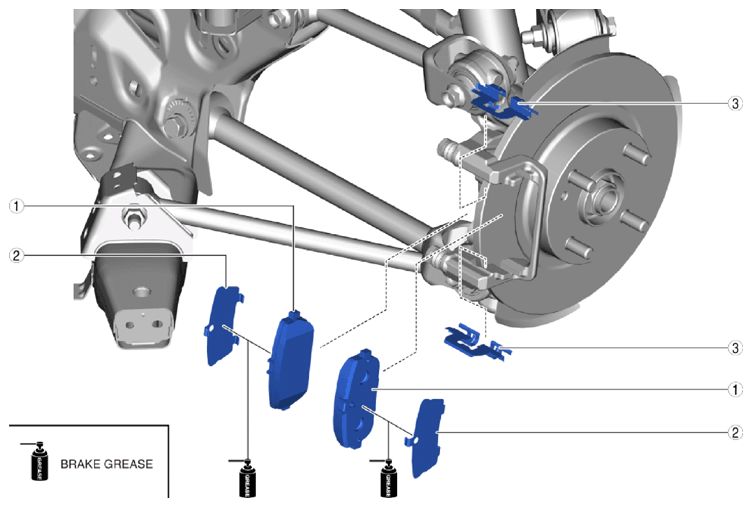

Fig 2: Identifying Disc Pad (Rear) Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Disc pad
2	Shim
3	Guide plate

After installation, pump the brake pedal a few times and inspect the following:
- The disc pad projection is securely assembled to the piston groove.
- Parking brake lever stroke (See PARKING BRAKE LEVER INSPECTION .)
- Brake drag
