EPS Control Module Inspection: Notes

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the voltage of the EPS control module using a tester.

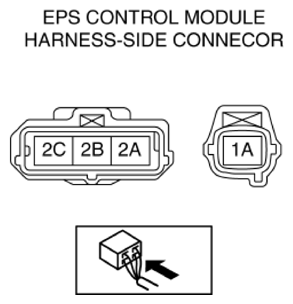

    Fig 1: Identifying EPS Control Module Connector Terminals
    G10953107Courtesy of MAZDA MOTORS CORP.
