Nut Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten nuts A and B shown in the figure.

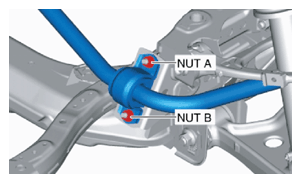

Fig 1: Identifying Front Stabilizer Component Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten nut B.
Tightening torque
- 20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
Tighten nut A.
Tightening torque
- 20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
Tighten nut B.
Tightening torque
- 20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
