Front Stabilizer Component Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assembly the front stabilizer component so that the identification mark is on the right side of the vehicle.

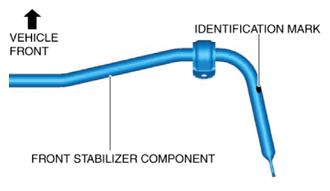

    Fig 1: Identifying Front Stabilizer Component Identification Mark
    G10952131Courtesy of MAZDA MOTORS CORP.
