Front Lower Arm Ball Joint Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the front lower arm ball joint installation nut.

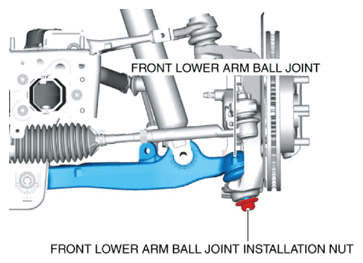

Fig 1: Identifying Front Lower Arm Ball Joint Nut
Courtesy of MAZDA MOTORS CORP.
Disconnect the steering knuckle and front lower arm ball joint end using the SST .

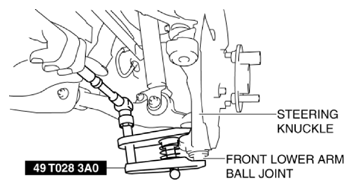

Fig 2: Disconnecting Steering Knuckle And Front Lower Arm Ball Joint End Using SST
Courtesy of MAZDA MOTORS CORP.
Remove the front lower arm ball joint installation nut.

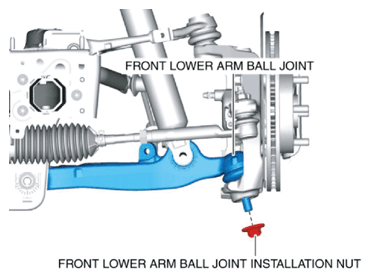

Fig 3: Identifying Front Lower Arm Ball Joint Installation Nut
Courtesy of MAZDA MOTORS CORP.
Suspend the steering knuckle to the coil spring as shown in the figure after removing the front lower arm ball joint.

Fig 4: Suspending Steering Knuckle From Coil Spring Using Cable

Courtesy of MAZDA MOTORS CORP.
